Starter Fertilizer Display: How low can YOU go?

When profits are squeezed, more farmers are asking about optimal starter fertilizer rates and how low starter fertilizer rates can be. These questions are the result of wanting to keep fertilizer costs down, to plant as many acres per day as possible, and to take advantage of more efficient, lower rates of banded phosphorus fertilizer compared to higher rates of broadcast phosphorus fertilizer.

To illustrate the role of starter fertilizer rates and seed placement, we put together displays showing the distance between fertilizer granules or droplets at various rates and row spacings. You can see several pictures with canola, corn, soybean, sugar beet, and wheat. We greatly thank John Heard with Manitoba Agriculture for helping with the displays.

The displays show the normal seed spacing for several crops with different dry or liquid fertilizer rates alongside the seed. These displays help visualize the distance between the seed and fertilizer at several rates. University research shows that to achieve the full starter effect, a fertilizer granule or droplet must be within 1.5-2.0 inches of each seed. If the fertilizer granule or droplet is more than 1.5-2.0 inches away from the seed, the starter effect is lost. Some people wonder about these displays, but you can prove it to yourself pretty easily. Just run the planter partially down on a hard surface at normal planting speed. You will see what you imagine as a constant stream of liquid fertilizer, ends up being individual droplets at normal speed, especially with narrow row spacings and lower fertilizer rates.

These displays help illustrate the minimum starter fertilizer rate to maintain fertilizer placement within 1.5-2.0 inches of each seed for the full starter effect. In addition to an adequate starter fertilizer rate, additional phosphorus and potassium should be applied to prevent nutrient mining, causing soil test levels to decline in years when minimum fertilizer rates are applied.

Split the Risk with In-season Nitrogen

For some farmers, applying fertilizer in the fall is a standard practice. You can often take advantage of lower fertilizer prices, reduce the spring workload, and guarantee that fertilizer is applied before planting. As you work on developing your crop nutrition plan, you may want to consider saving a portion of the nitrogen budget for in-season nitrogen topdress or sidedress application.

Some farmers always include topdressing or sidedressing nitrogen as part of their crop nutrition plan. These farmers have witnessed too many years with high in-season nitrogen losses, usually on sandy or clayey soils, through nitrate leaching or denitrification. Split-applied nitrogen is one way to reduce early season nitrogen loss, but do not delay too long before rapid crop nitrogen uptake begins.

Short-season crops, like small grains or canola, develop quickly. Your window for topdress nitrogen is short, so earlier is better than later. To maximize yield in small grains, apply all topdress nitrogen before jointing (5-leaf stage). Any nitrogen applied after jointing will mostly go to grain protein. In canola, apply nitrogen during the rosette stage, before the 6-leaf stage. For topdressing, the most effective nitrogen sources are broadcast NBPT-treated urea (46-0-0) or urea-ammonium nitrate (UAN, 28-0-0) applied through streamer bar (limits leaf burn). Like any surface-applied urea or UAN, ammonia volatilization is a concern. An effective urease inhibitor (e.g. Agrotain, generic NBPT) offers about 7 to 10 days of protection before rain can hopefully incorporate the urea or UAN into soil.

Long-season crops, like corn or sunflower, offer more time. Rapid nitrogen uptake in corn does not begin until after V6 growth stage. The Presidedress Soil Nitrate Test (PSNT), taken when corn is 6 to 12 inches tall, can help you decide the appropriate sidedress nitrogen rate. Topdress NBPT-treated urea is a quick and easy option when corn is small (before V6 growth stage). After corn reaches V10 growth stage, you should limit the topdress urea rate to less than 60 lb/acre (28 lb/acre nitrogen) to prevent whorl burn.

Sidedress nitrogen provides great flexibility in nitrogen sources and rates in row crops like corn, sugarbeet, or sunflower. Sidedress anhydrous ammonia can be safely injected between 30-inch rows. Anhydrous ammonia is not recommended in wet clay soils because the injection trenches do not seal well. Surface-dribbled or coulter-injected UAN can be applied on any soil texture. Surface-dribbled UAN is vulnerable to ammonia volatilization until you receive sufficient rain, so injecting UAN below the soil surface helps reduce ammonia loss. Injecting anhydrous ammonia or UAN below the soil surface also reduces contact with crop residue and potential nitrogen immobilization.

An effective in-season nitrogen program starts with planning. In years with substantial nitrogen loss, a planned in-season nitrogen application is usually more successful than a rescue application. If you are considering split-applied nitrogen for the first time, consider your options for nitrogen sources, application timing and workload, and application equipment. Split-applied nitrogen is another tool to reduce nitrogen loss risk and maximize yield potential.

Caution: Ammonium Sulfate with Seed

Seed-placed fertilizer is a common practice to increase seedling vigor and optimize fertilizer placement and crop response. This is a popular strategy to apply phosphorus for canola, corn, and wheat. However, the seed-placed fertilizer rate cannot exceed seed safety limits, otherwise seedling germination and plant population may be reduced. Sulfur is very important in canola growth and development, so farmers often try placing ammonium sulfate (AMS) with canola seed as well! This can create big problems.

A team of agronomists and soil scientists at the University of Manitoba conducted greenhouse and field studies, examining the effect of seed-placed ammonium sulfate on canola plant population and seed yield. The plant population loss was much greater on soils with pH > 7.5 (Figure 1). The high pH soils contained calcium carbonate (CaCO3), which reacts with ammonium sulfate to create calcium sulfate (gypsum) and ammonium carbonate. The higher reaction pH of ammonium carbonate produces free ammonia (NH3). Free ammonia (NH3) in soil is toxic to living organisms and kills germinating seeds. Acute ammonia toxicity is a major concern with fertilizer materials that liberate free ammonia (NH3) in soil, such as anhydrous ammonia (82-0-0) or urea (46-0-0), ultimately reducing plant population if you are not careful with fertilizer rate and placement.

For Caution: Ammonium Sulfate with Seed post

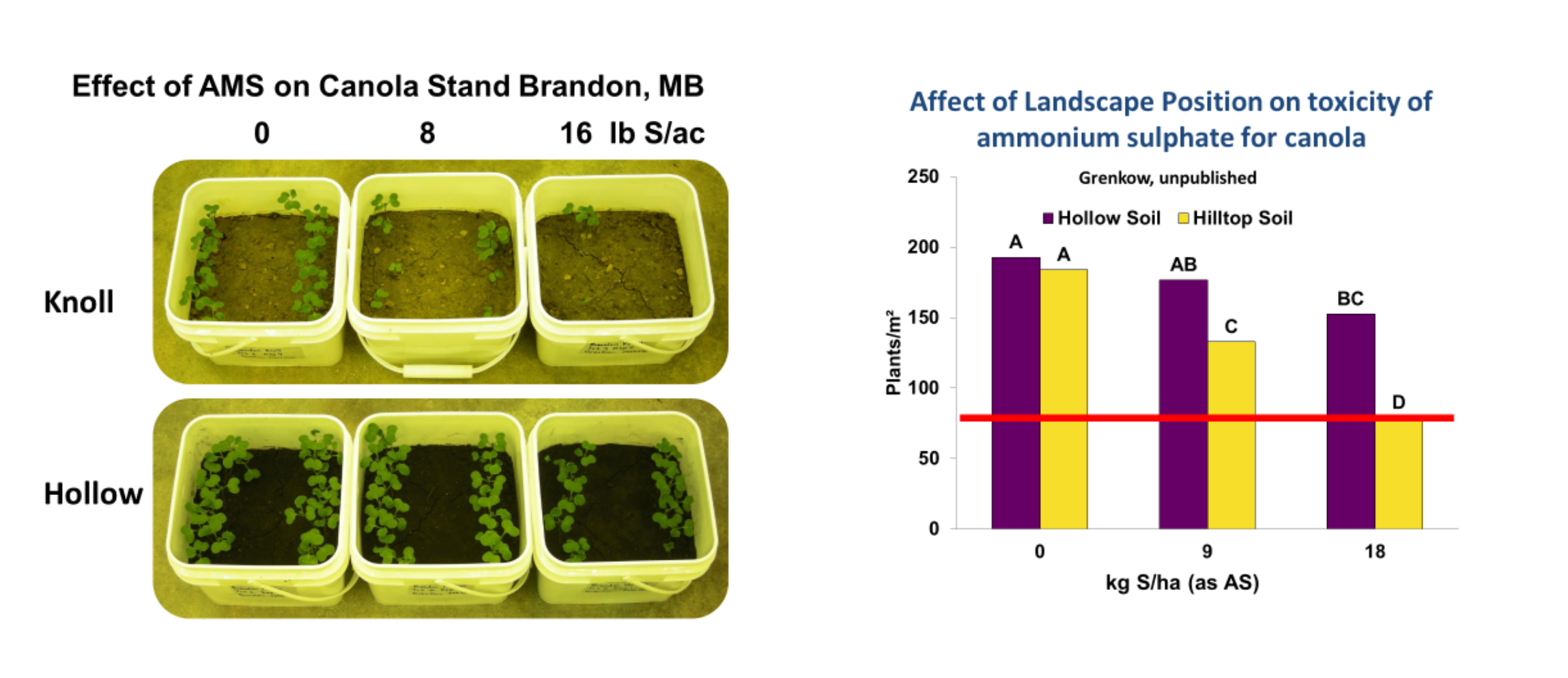

Figure 1. Ammonium sulfate (AMS, 21-0-0-24S) included with seed-placed monoammonium phosphate (MAP, 10-52-0) reduced canola plant population. Soil carbonate content is 21% CCE and 0.5% CCE in knoll soil and hollow soil, respectively. Brandon, Manitoba.

Across the landscape, soil pH and carbonate content will vary. The well-drained lower landscape positions (swales, hollows) often have acidic to neutral pH and little carbonate. The upper landscape positions (knobs, knolls), suffering decades of soil erosion, often have high pH and ample carbonate (Figure 1). The risk of plant population loss is greater on eroded knobs where adding ammonium sulfate can create ammonia toxicity concern.

Considerable yield loss will occur if canola plant population is less than 70 plants per square meter. Even with low fertilizer rates, the interaction of seed-placed ammonium sulfate and phosphorus can greatly reduce canola plant population. In Manitoba, 25% plant population loss was observed with only 8 lb/acre S and 18 lb/acre P2O5 (Figure 2).For Caution: Ammonium Sulfate with Seed article

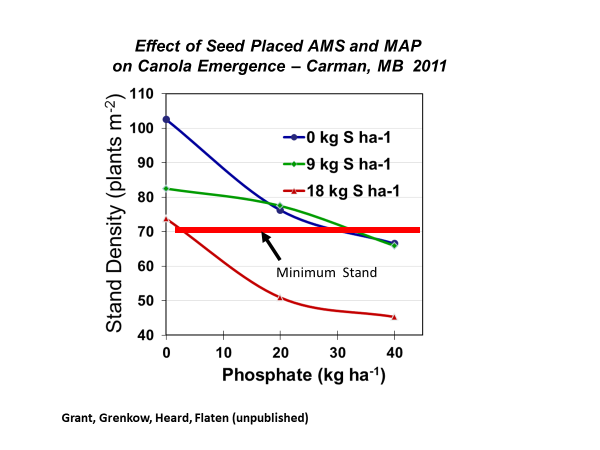

Figure 2. Ammonium sulfate (AMS, 21-0-0-24S) included with seed-placed monoammonium phosphate (MAP, 10-52-0) reduced canola plant population. Carman, Manitoba, 2011.

Sulfur is vital for successful canola production, but it must be applied safely. There are new air drill configurations with innovative seed and fertilizer placement options. Seed safety is paramount with seed-placed fertilizer. Ammonium sulfate should be broadcasted or banded away from seed (mid-row). Keeping ammonium sulfate away from seed will also allow you to maximize seed-placed phosphorus rates and efficiency without jeopardizing seed safety.

Placing ammonium sulfate with seed should be an emergency option only. Canola plant population loss should be expected, even at low ammonium sulfate rates, on soils with pH greater than 7.5 and calcium carbonate.

Fallow Syndrome: Preventing Phosphorus Problems

Some crops that do not support mycorrhizal fungi (left to right: sugar beet, canola, radish).

Producers in the northern Great Plains and upper Midwest need to consider the risk of fallow syndrome in their crop nutrition plans. You are probably asking, what is “fallow syndrome” and why should I care? After all, summer fallow is not that common anymore! But the greater number of Prevented Planting acres in 2019 and 2020 meant that we have had many unintended fallow fields, making fallow syndrome a serious and widespread concern for the next year.

Fallow syndrome is an induced phosphorus deficiency caused by a lack of mycorrhizal fungi in soil. Some plant species, like corn and wheat, rely heavily on mycorrhizae to colonize the plant root system and help acquire important nutrients like phosphorus and zinc. If soil is lacking sufficient mycorrhizae to colonize plant roots, a case of fallow syndrome will increase phosphorus fertilizer needs and even cost crop yield potential.

Understanding mycorrhizae

Mycorrhizae fungi occur naturally in soils and readily colonize plant roots. Upon root colonization, mycorrhizae fungal filaments act as extensions of the root system and increase the soil volume available for plant water and nutrient uptake. The combined root-mycorrhizae surface area can be up to 10-fold greater than roots without mycorrhizae. Mycorrhizae depend on living plant roots to support stable mycorrhizae populations. However, not all plant species host and support mycorrhizae growth. Some common field crops are non-host species and their planting results in rapid drops in mycorrhizae populations.

Summer fallow or unplanted cropland, such as Prevented Planting in 2020, is a classic example of providing no or few living plant roots in soil to maintain mycorrhizae populations. In addition, some crop species do not support mycorrhizae, such as those in the goosefoot family (sugar beet) and mustard family (canola, radish, turnip). Following a classic case of summer fallow or a non-mycorrhizae supporting crop, the mycorrhizae population in soil will quickly drop. A cover crop mix that included a grass species (e.g. barley, rye) should still support mycorrhizae and prevent fallow syndrome concerns.

Preventing fallow syndrome

The easiest prevention strategy after fallow is planting a crop species without fallow syndrome risk like soybean, canola, or sugar beet. Avoid planting susceptible crops like corn and wheat. These crops are highly dependent on mycorrhizae to acquire phosphorus, and extra starter phosphorus will be required if fallow syndrome risk is present.

To reduce fallow syndrome risk in corn or wheat, extra phosphorus fertilizer must be placed with or near the seed. Applying more broadcast phosphorus or relying on high soil test P will not prevent fallow syndrome. The starter phosphorus rate should be 20 to 40 lb/acre P2O5. In some university research trials, up to 60 lb/acre P2O5 with 2×2-band placement near the seed was needed to prevent corn yield loss to fallow syndrome.

For wheat, these phosphorus rates are typically seed safe with monoammonium phosphate (MAP, 11-52-0). Most corn planters can safely apply 20 lb/acre P2O5 (5 gal/acre ammonium polyphosphate, APP, 10-34-0) in the furrow. For medium/fine-textured soils with good soil moisture at planting, you can generally apply up to 10 gal/acre 10-34-0 (40 lb/acre P2O5) safely in the furrow at 30-inch row spacing. Higher 10-34-0 rates may exceed seed safety limits on dry soils or coarse-textured soils and require 2×2-band placement to maintain seed safety.

Complete liquid fertilizers, such as 6-24-6 or 9-18-9, are not suggested for preventing fallow syndrome. Compared to 10-34-0, the products have lower P concentration that result in less applied phosphorus, even if used at maximum seed safe rates. The extra N + K2O in “complete” liquid fertilizers increases the salt index and lowers the seed safe rate.
